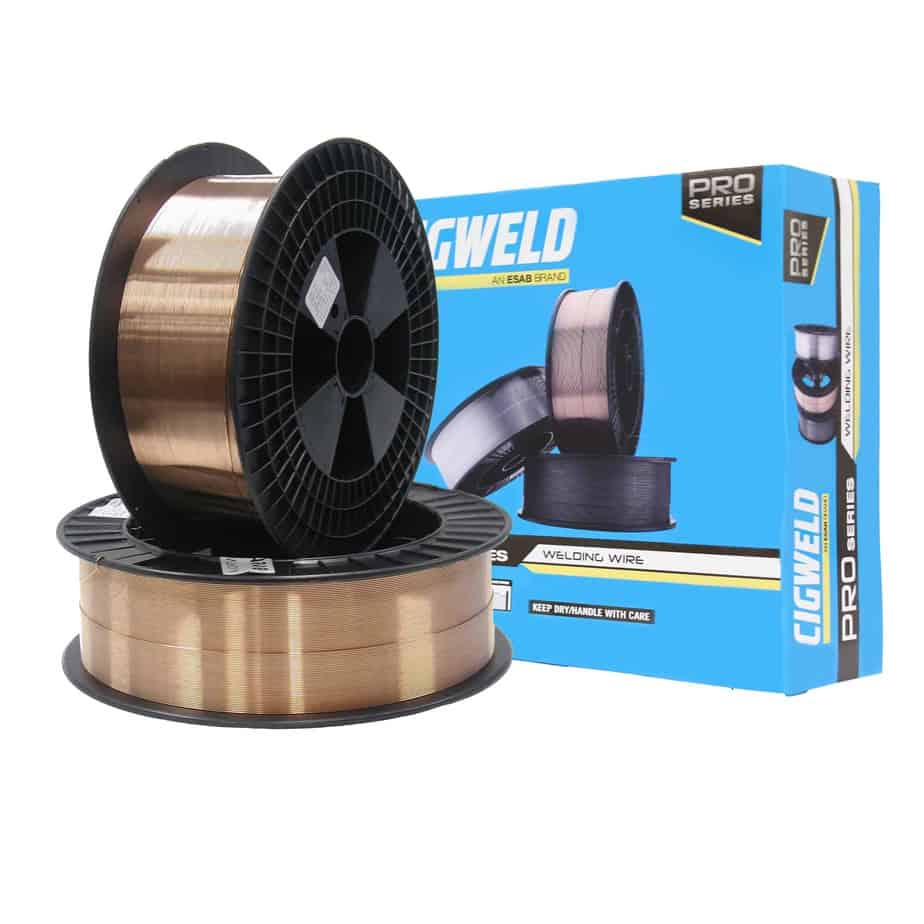

Cigweld Wire Autocraft LW1-6 0.9mm 15kg
Autocraft LW1-6 is a high quality copper coated welding wire suitable for the all positional Gas Metal Arc Welding (GMAW) of mild and low alloy steels, used in general fabrication and structural work
Packaging Data
Features & Benefits
Classifications
ISO AS/NZS 14341: B G 49A 3U C1/M21/M24 S6
AWS/ASME-SFA A5.18: ER70S-6.
Applications
Welding of trailers, car ramps, structural steel etc.
Typical Wire Analysis
C: 0.07%
Mn: 1.55%
S: 0.012%
P: 0.015%
Si: 0.88%
Typical diffusible hydrogen levels to AS3752
1.0 – 2.0 mls of hydrogen / 100gms of deposited weld metal
Recommended Shielding Gas
Ar+CO2 (8-25%) or Ar+CO2+O2 or Welding Grade CO2
Typical All Weld Mechanical Properties
Argon + 18-25% CO2
Yield Stress: 460 MPa
Tensile Strength: 550 MPa
Elongation: 29%
CVN Impact Val. 120 J @ -20°C
