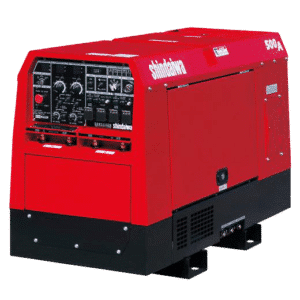

Shindaiwa DGW300MS 300A Mine Spec Diesel Generator/Welder

Description

Shindaiwa Logo

280Amps of welding power, stick or wire feeder capability on both A and B welding side. Pre-Dial Voltage or amperage, dual remote controls and 8kVA of single phase auxiliary power. All this is packaged into a lightweight super silenced enclosure made to meet Australian mine site standards from the factory. The perfect welder for remote sites.

Features
  • Exceptional welding performance
  • Ultra Quiet 58 dbA
  • VRD fitted standard
  • Earth leakage and overload protection
  • Lightweight and compact
  • Auto Engine Safety Shutdown
  • Waterproof Construction
  • 5kVA Auxiliary Power
Specifications
Welding Generator
  • Generating Method: Rotating Field
  • Rated Current (Amps): 260
  • Rated Current (Volts): 12-40V (CV) 30-300A (CC)
  • Rated Duty Cycle (%): 80
  • Rated Speed min – 1: 3000
  • No Load Voltage (V): MAX 85
  • Output Current Adj. Range (A): 30-300A
  • Welding Rod (mm): 2.0 – 6mm
AC Generator
  • Rated Frequency (Hz): 50
  • Rated Speed min – 1: 3000
  • No. Of Phase: 1 Phase (50Hz)
  • Rated Voltage (Volts): 240
  • Power Factor: 1
  • Rated Output (kVA): 8.0
  • Rating: Continuous
Diesel Engine
  • Model: Kubota D722
  • Type: 3 Cylinder Vertical, Water-Cooled 4-Cycle Diesel Engine
  • Displacement (L): 0.719
  • Rated Output (kW/min-1): 11.7/3000
  • Fuel: ASTM no 2 Diesel Fuel
  • Lubricant Oil Capacity (L): 3.0L (Effective 1.4L)
  • Cooling Water Capacity (L): 3.0 (Sub Tank Capacity 0.8 L included)
  • Starting Method: Starter Motor
General Characteristics
  • Battery: 46B24L
  • Fuel Tank Capacity (L): 63
  • Dimensions LxWxH (mm): 1400x850x600
  • Dry Weight (kg): 370

Price on application

in stock
