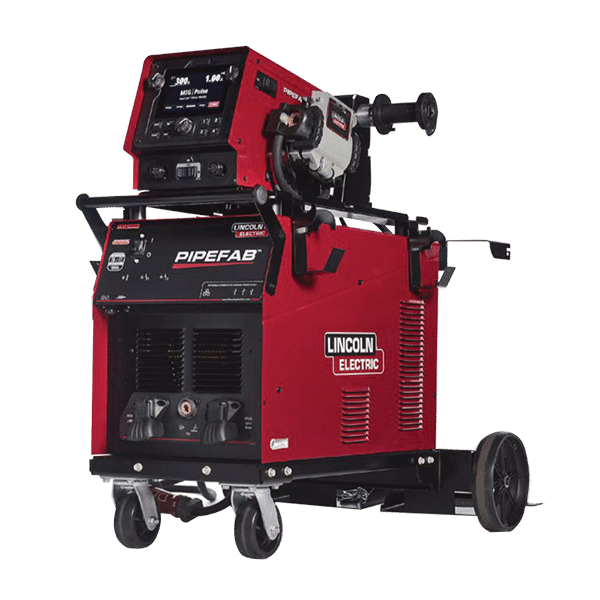

From concept to reality, the PIPEFAB™ welding system was developed for one purpose – to deliver the ideal setup for pipe and vessel fabrication. From machine design to arc performance, no detail was overlooked in delivering a complete, customer-driven system that lets your shop focus on what matters most – making high-quality root-to-cap welds, faster and easier.
|Description||Product Number||Input Voltage/ Phase/ Hertz||Rated Output/ Voltage/ Duty Cycle||Input Current @ Rated Output||Dimensions H x W x D||Weight|
|PIPEFAB™ Power Source||K3731-1||200-208/220-230/380- 415/460/575||STICK: 55 – 400A / 36V @ 100% MIG: 40 – 400A / 26V @ 100% FLUX-CORE: 40 – 400A / 26V @ 100% TIG: 5 – 400A / 26 V @ 100%||53/46/26/24/19||22.1 in x 17.5 in x 34.8 in||207 lbs|
|PIPEFAB™ Feeder||K3735-1||14.5 in x 22 in x 30.2 in||80 lbs|
|PIPEFA™ Ready-Pak||K3734-1||43.5 in x 30.9 in x 48.5 in||340 lbs|
$31953.98 per item
