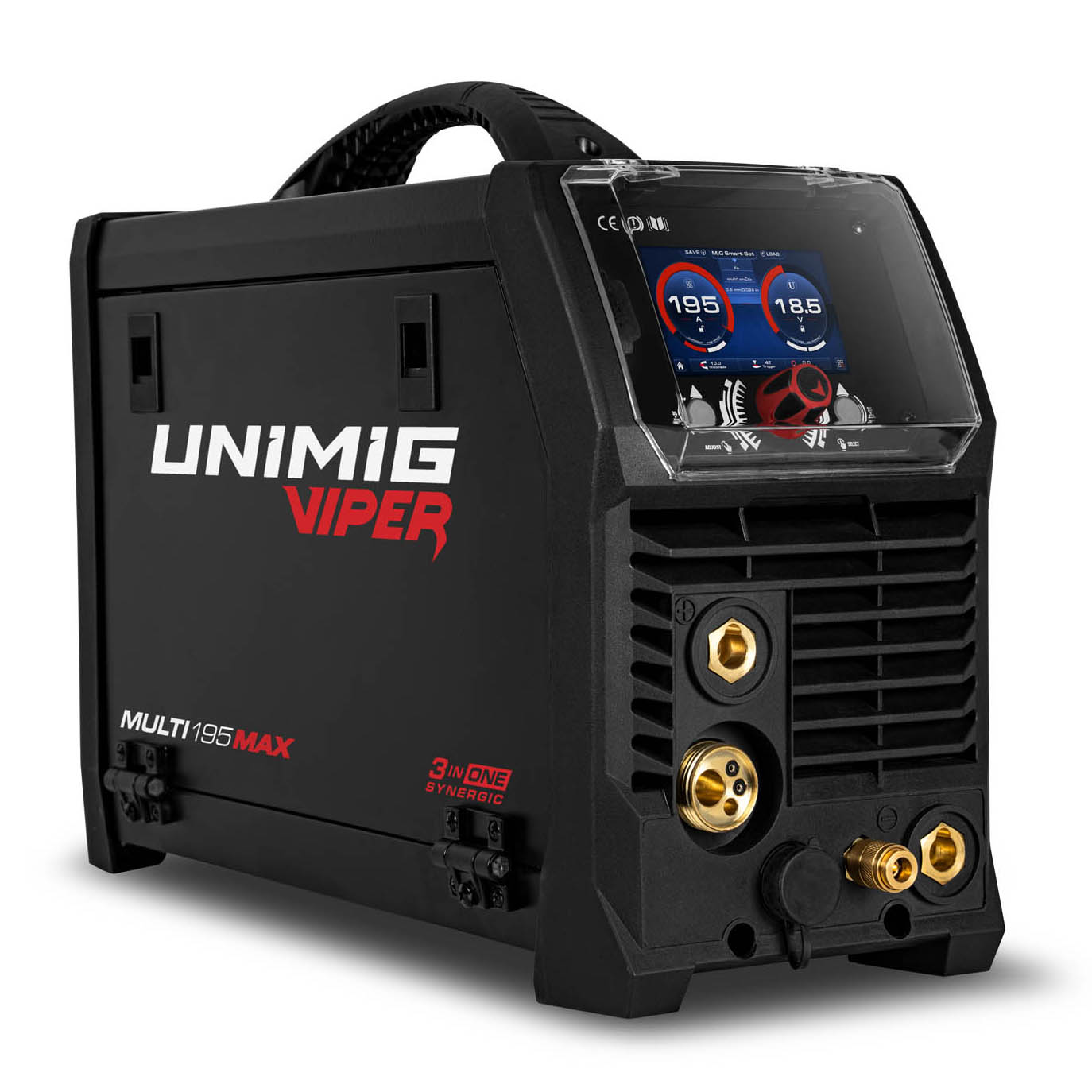

Unimig Viper Multi 195 MAX Welder

Description

The VIPER MULTI 195 MAX is now out, the latest addition to our VIPER range. This 3-in-1 machine has been packed full of features so it can do just about everything, MIG, DC TIG and STICK, and all on a 10A plug. It comes loaded with complete, comprehensive synergic MIG and TIG programs, so setting up for your welds has never been quicker or easier.

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

10 AMP

Ieff (A)

8.9

RATED OUTPUT

25A/15V – 195A/23.8V

NO LOAD VOLTAGE (V)

67

PROTECTION CLASS

IP21

INSULATION CLASS

H

MINIMUM GENERATOR (kVA)

8.5

DINSE CONNECTOR

35/50

STANDARD

AS/NZS 60974.1

SUITABLE MATERIAL

MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze MMA: Mild Steel, Stainless Steel, Cast Iron

WARRANTY (Years)

3

MIG SPECIFICATIONS

MIG WELDING CURRENT RANGE

25-195A

MIG DUTY CYCLE @ 40°C

15% @ 195A / 60% @ 98A / 100% @ 76A

MIG WIRE SIZE RANGE

0.6-1.0mm

MIG WIRE SPOOL SIZE

1kg / 5kg

MIG WELDING THICKNESS RANGE

1-8mm

DRIVE ROLLER SIZE

30/22

TIG SPECIFICATIONS

TIG FUNCTION TYPE

DC High-Frequency

TIG WELDING CURRENT RANGE

5-195A

TIG DUTY CYCLE @ 40°C

30% @ 195A / 60% @ 138A / 100% @ 107A

TIG WELDING THICKNESS RANGE

1-8mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

5-195A

STICK DUTY CYCLE @ 40°C

15% @ 195A / 60% @ 98A / 100% @ 76A

STICK ELECTRODE RANGE

2.5-4.0mm

STICK WELDING THICKNESS RANGE

2-10mm

SIZE & WEIGHT

DIMENSIONS (mm)

470×190×350mm

WEIGHT (kg)

11.8kg

MACHINE FEATURES

WIRE DRIVE

Geared

VRD

Yes

SPOOL GUN CONNECTION

Yes

FOOT CONTROL CONNECTION

Yes

BURNBACK ADJUSTMENT

Yes

WIRE INCH

Yes

INDUCTANCE CONTROL

Yes

CRATER CURRENT CONTROL

Yes

THERMAL OVERLOAD PROTECTION

Yes

Package Contents:

  • VIPER MULTI 195 MAX Welder
  • 4m M15 MIG Torch
  • 4m SR17 Flex-Head TIG Torch
  • 4m Twist Lock Electrode Holder
  • 4m 300 Amp Earth Clamp & Lead
  • Twin Gauge Argon Regulator
  • 2m Gas Hose Complete with fittings
  • Operating Manual
  • 0.8-0.9mm V Groove Roller
  • 0.8-0.9mm F Groove Roller
  • 1.0-1.2mm U Groove Roller

$1199.00per item

in stock
